Overview : Linear regression is a statistical tool used to predict future values from past values. In the case of security prices, it is commonly used to determine when prices are overextended.
A Linear Regression trendline uses the least squares method to plot a straight line through prices so as to minimize the distances between the prices and the resulting trendline.
Interpretation : If you had to guess what a particular security’s price would be tomorrow, a logical guess would be “fairly close to today’s price.” If prices are trending up, a better guess might be “fairly close to today’s price with an upward bias.” Linear regression analysis is the statistical confirmation of these logical assumptions.
A Linear Regression trendline is simply a trendline drawn between two points using the least squares fit method. The trendline is displayed in the exact middle of the prices. If you think of this trendline as the “equilibrium” price, any move above or below the trendline indicates overzealous buyers or sellers.
A popular method of using the Linear Regression trendline is to construct Linear Regression Channel lines. Developed by Gilbert Raff, the channel is constructed by plotting two parallel, equidistant lines above and below a Linear Regression trendline. The distance between the channel lines to the regression line is the greatest distance that any one closing price is from the regression line. Regression Channels contain price movement, with the bottom channel line providing support and the top channel line providing resistance. Prices may extend outside of the channel for a short period of time. However if prices remain outside the channel for a longer period of time, a reversal in trend may be imminent.
A Linear Regression trendline shows where equilibrium exists. Linear Regression Channels show the range prices can be expected to deviate from a Linear Regression trendline.
The Time Series Forecast indicator displays the same information as a Linear Regression trendline. Any point along the Time Series Forecast is equal to the ending value of a Linear Regression Trendline. For example, the ending value of a Linear Regression trendline that covers 10 days will have the same value as a 10-day Time Series Forecast.
The following approximations offer a few rules of thumb for using the standard deviation settings:
1- Plus or minus one standard deviation takes in 68.3% of all expected outcomes (historical price moves).
2- Plus or minus two standard deviations takes in 95.4% of all expected outcomes (historical price moves).
3- Plus or minus three standard deviations takes in 99.7% of all expected outcomes (historical price moves).

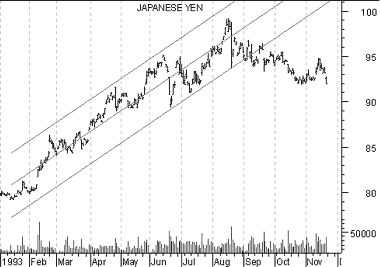

Example : The following chart shows the Japanese Yen with a Linear Regression Channel.
Calculation :
The linear regression formula is :
Where:
